Carpet Tufting Machine

Production of Level Loop Pile and Level Cut Pile Carpets

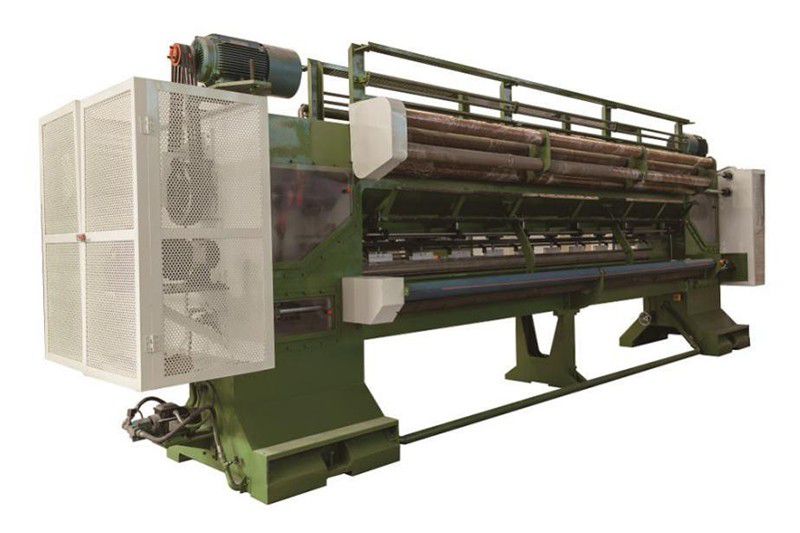

Carpet Tufting Machine, Level Loop Pile / Level Cut Pile

Wuding(WDCM) has two basic types of carpet tufting machine to produce single-color level loop pile carpet and level cut pile carpet respectively. By using these carpet making machines, all of the loops or cut piles are the same height in the carpet, creating a uniform look. The working width of these tufting machines can reach 4100mm or even 5100mm, and the running speed is up to 1100rpm. Pile yarns and backing cloth are fed to tufting machine using servo motor, and the process can be easily controlled via touch screen with digital display, providing reliable and stable running. The machine-tufted carpets and rugs are featured by smooth and even surface with velvety finish which is durable and easy to maintain, and can be widely used in a variety of household and commercial venues, as well as vehicles.

Inquiry
Examples
  • Carpet Tufting Machine, Level Loop Pile / Level Cut Pile

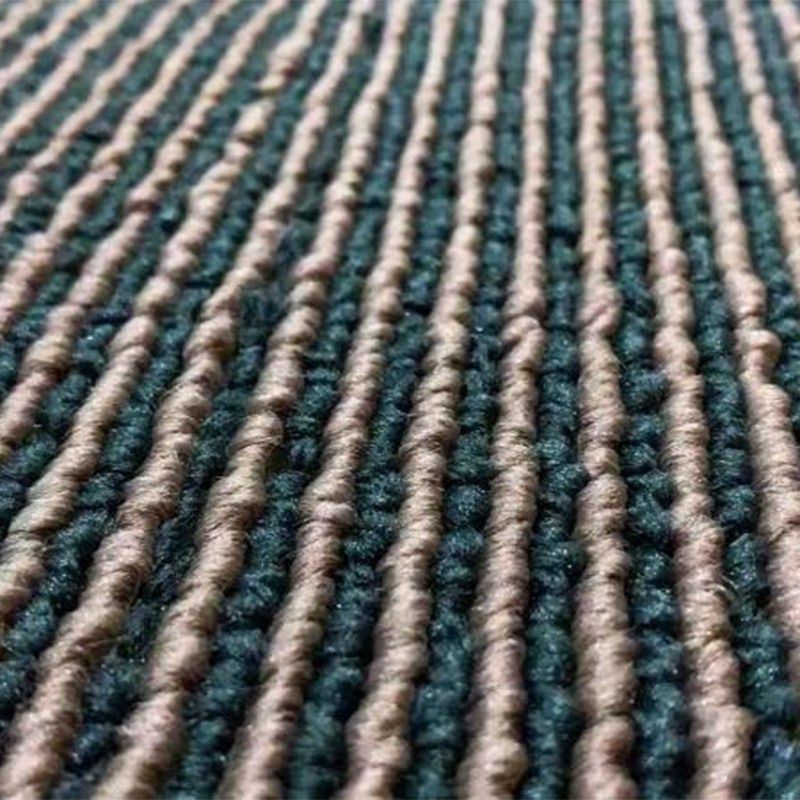

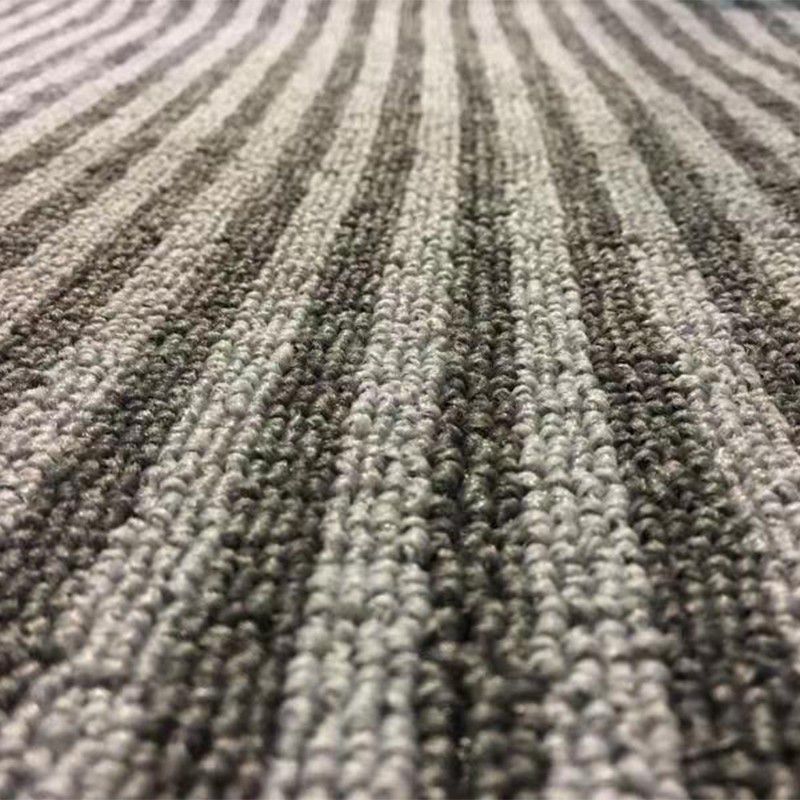

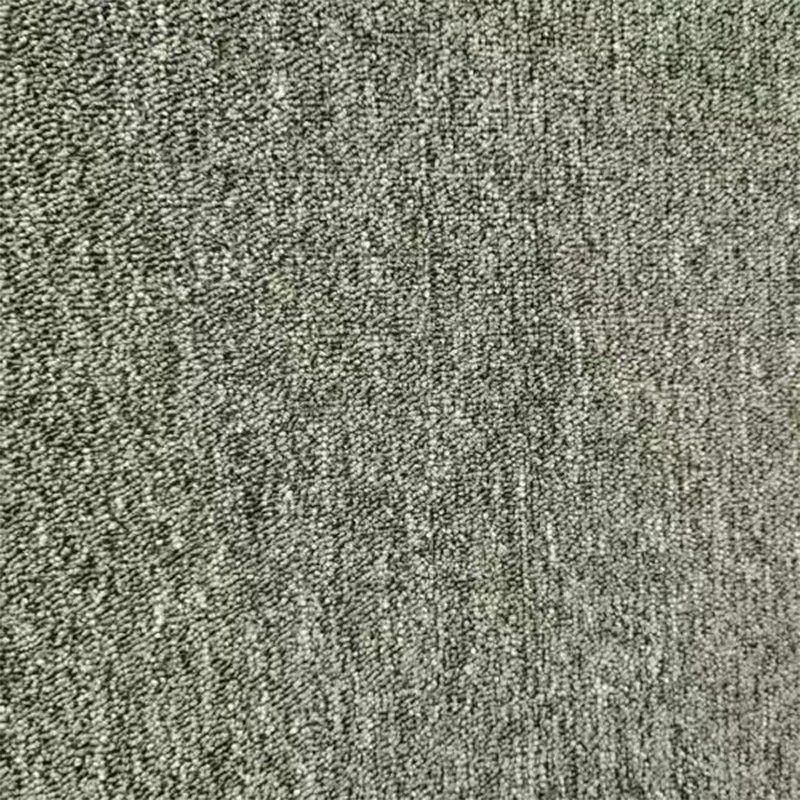

    Level Loop Pile Carpet
  • Carpet Tufting Machine, Level Loop Pile / Level Cut Pile
    Level Loop Pile Carpet
  • Carpet Tufting Machine, Level Loop Pile / Level Cut Pile
    Level Loop Pile Carpet
  • Carpet Tufting Machine, Level Loop Pile / Level Cut Pile

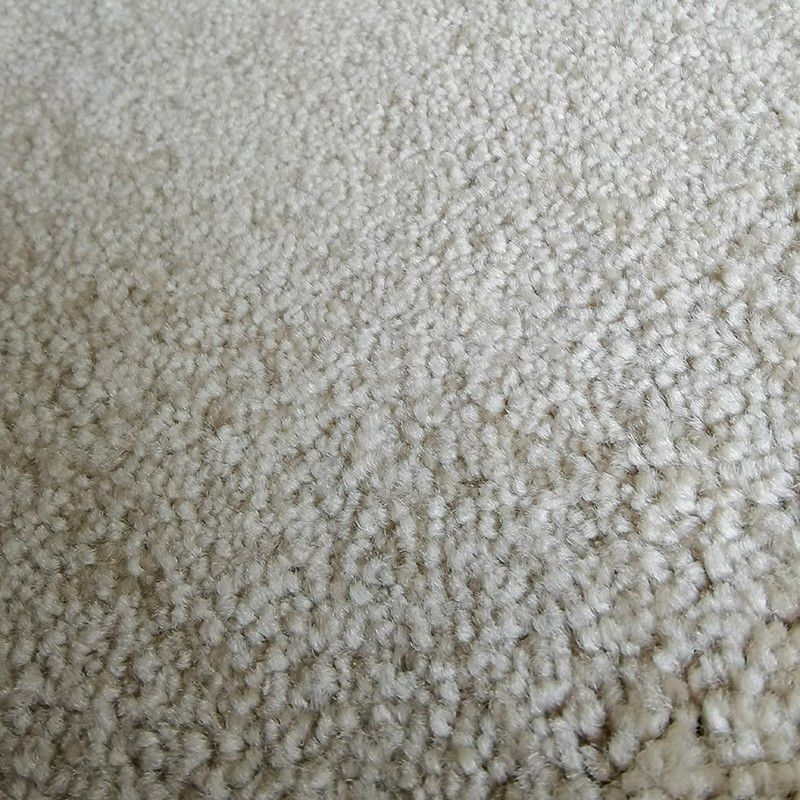

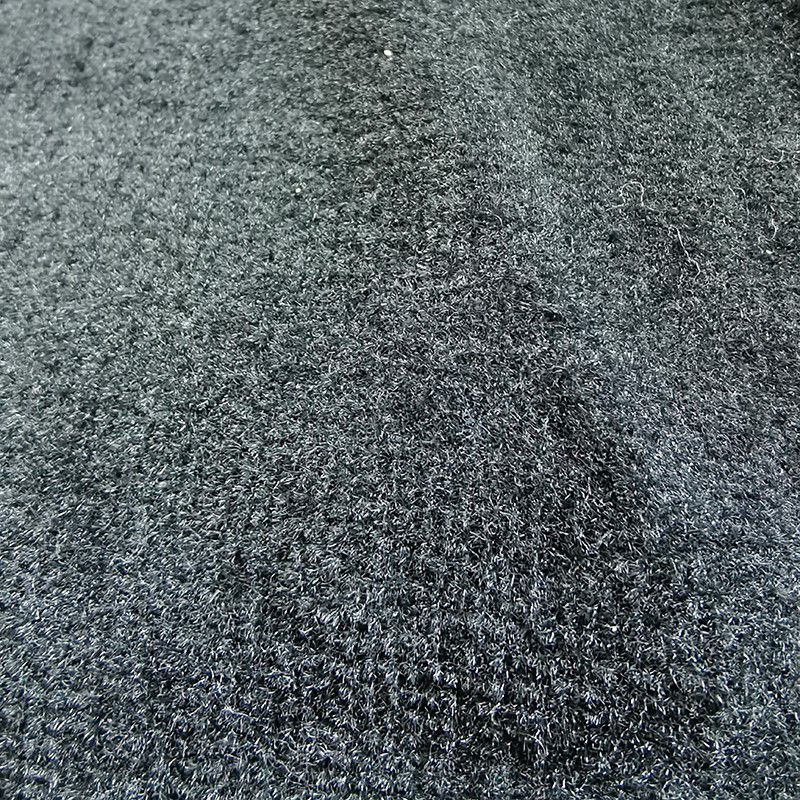

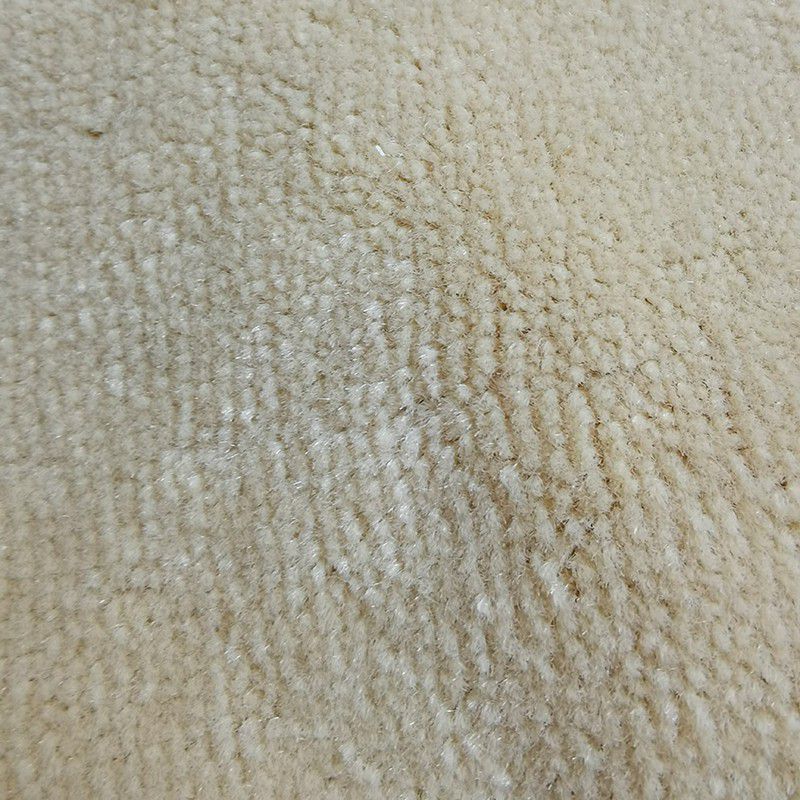

    Cut Pile Carpet
  • Carpet Tufting Machine, Level Loop Pile / Level Cut Pile
    Cut Pile Carpet
  • Carpet Tufting Machine, Level Loop Pile / Level Cut Pile
    Cut Pile Carpet

Since these two types of tufting machine make carpets with only one color, many carpet manufacturers add carpet dyeing machine or printing equipment for afterwards dyeing and printing to produce various textured and patterned carpets and rugs. You can also see our COLORDOT tufting machine which can produce patterned carpets with multiple colors.

Specifications
Gauge 5/64 inch 1/10 inch 1/8 inch
Motor power 11kW*2(2m) 15kW*2(4m) 11kW*2(2m) 15kW*2(4m) 11kW*2(2m) 15kW*2(4m)
Pile height Loop pile: 3-7mm Cut pile: 3-6mm Loop pile: 3-7mm Cut pile: 5-12mm Loop pile: 3-7mm Cut pile: 5-12mm
Mechanical speed Loop pile: 700-1100rpm Cut pile: 500-800rpm Loop pile: 700-1100rpm Cut pile: 500-800rpm Loop pile: 700-1100rpm Cut pile: 500-800rpm
Tufting machine is a quicker carpet production approach in comparison with carpet weaving machine, and it is becoming a popular choice by carpet manufacturers. Wuding(WDCM) is a tufting machinery supplier that designs and produces carpet and artificial turf making equipment that uses tufting needle to penetrate the yarn into the backing cloth. We are committed to developing exceptional tufting machine technology to fit the customer's needs of tufted floor covering and soft-surface flooring. We can also provide tufting gauge parts including tufting needles and tufting loopers to ensure your existing textile tufting equipment runs smoothly. Please give us a call or email to learn more about our tufting machines for your synthetic turf manufacturing and area rug construction operations.
